Imagine a science textbook without images. No charts, no graphs, no illustrations or diagrams with arrows and labels. The science would be a lot harder to understand.
ADVERTISEMENT |
That's because humans are visual creatures by nature. People absorb information in graphic form that would elude them in words. Images are effective for all kinds of storytelling, especially when the story is complicated, as it so often is with science. Scientific visuals can be essential for analyzing data, communicating experimental results and even for making surprising discoveries.

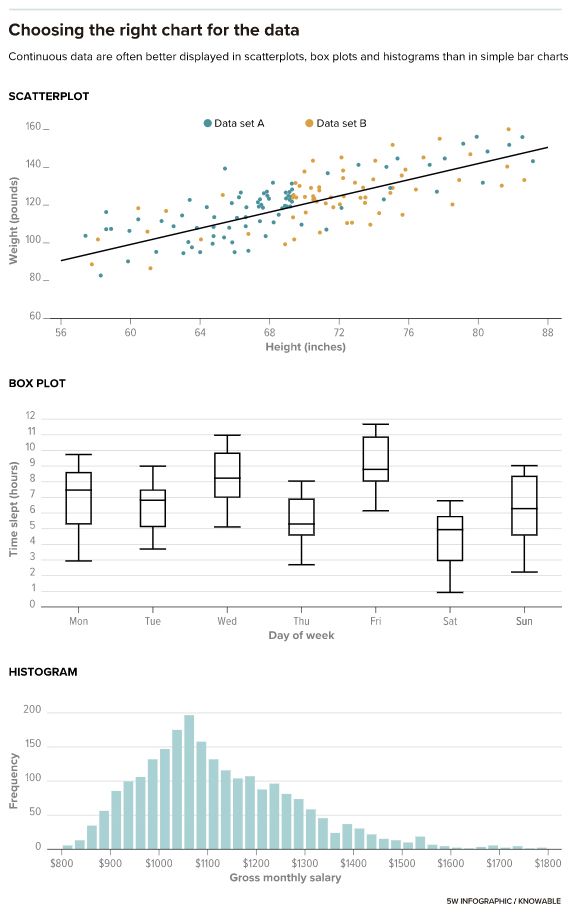

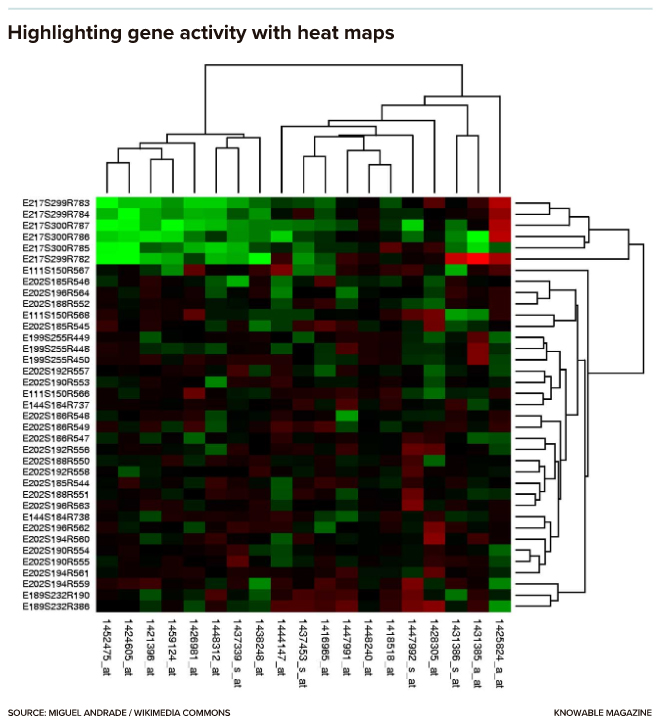

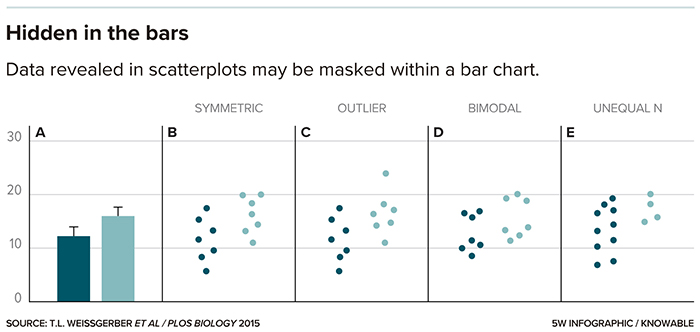

Visualizations can reveal patterns, trends and connections in data that are difficult or impossible to find any other way, says Bang Wong, creative director of MIT's Broad Institute. "Plotting the data allows us to see the underlying structure of the data that you wouldn't otherwise see if you're looking at a table."
…
